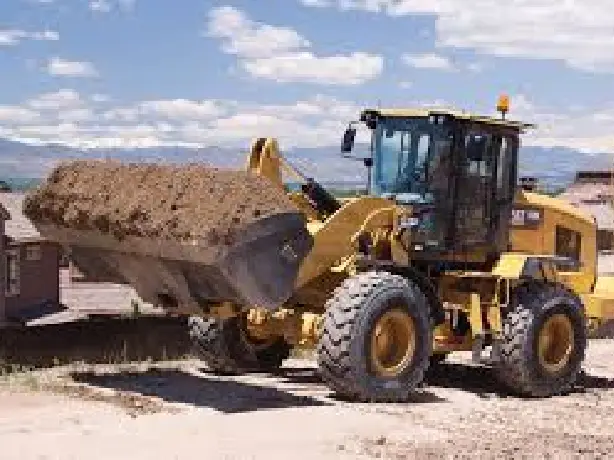

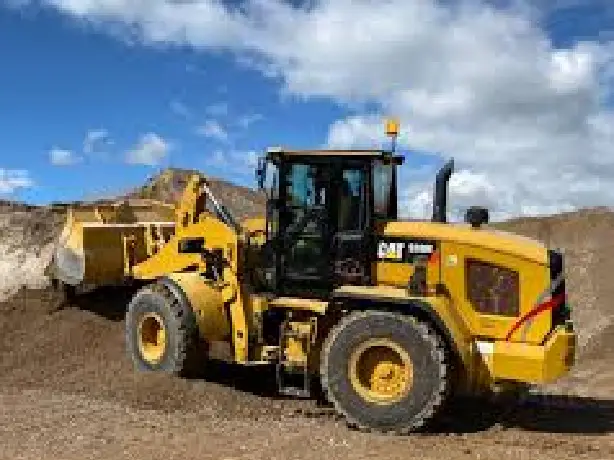

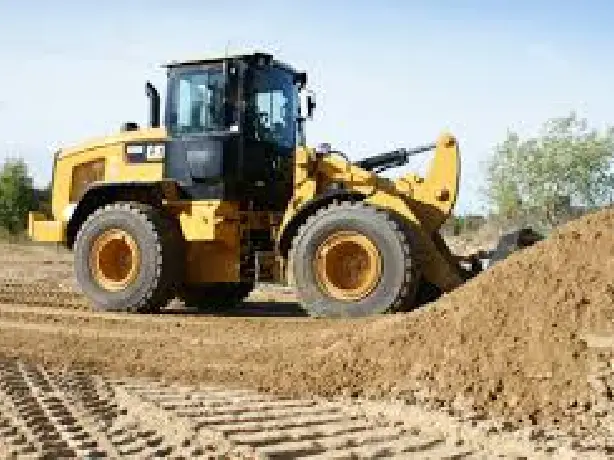

Wheel loader

Description

Engine
Rated Gross Power – SAE J1995: 170 hp
Engine Model: Cat C7.1*
Performance Mode: Automatic
Rated Gross Power – Rated Engine Speed: 1800 r/min
Rated Gross Power – SAE J1995 (DIN): 172 mhp
Rated Engine Power – ISO 14396: 168 hp
Rated Engine Power – ISO 14396 (DIN): 170 mhp
Rated Net Power – SAE J1349 at Minimum Fan Speed: 165 hp
Rated Net Power – ISO 9249 at Minimum Fan Speed: 165 hp
Rated Net Power – ISO 9249 (DIN) at Minimum Fan Speed: 167 mhp
Maximum Gross Torque – Engine Speed: 1400 r/min
Maximum Gross Torque – SAE J1995: 608 ft·lbf
Maximum Gross Torque – ISO 14396: 601 ft·lbf
Maximum Net Torque – SAE J1349: 593 ft·lbf
Maximum Net Torque – ISO 9249: 595 ft·lbf
Displacement: 427 in³
Bore: 4 in
Stroke: 5 in
Service Refill Capacities
Fuel Tank: 51.5 gal (US)
Cooling System: 7.9 gal (US)
Engine Crankcase: 5.3 gal (US)
Transmission – Gear Box: 2.2 gal (US)
Front Axles: 6.9 gal (US)
Rear Axles: 6.6 gal (US)
Hydraulic System – Including Tank: 43.6 gal (US)
Hydraulic Tank: 23.8 gal (US)
Diesel Exhaust Fluid (DEF) Tank: 5 gal (US)
