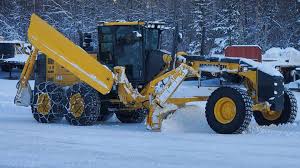

Road grader

Description

Engine
Base Power (1st Gear) – Net: 178 kW
Engine Model: Cat C13
Bore: 130 mm
Stroke: 157 mm
Speed at Rated Power: 1,850 rpm
Moldboard
Blade Width: 4.3 m
Arc Radius: 413 mm
Throat Clearance: 117 mm
Blade Width – With End Bits: 4290 mm
Blade Height – With Cutting Edge: 631 mm
Blade Width – Without End Bits: 4166 mm
Blade Height – Without Cutting Edge: 585 mm
Blade Range
Maximum Depth of Cut: 593 mm
Circle Centershift – Left: 650 mm
Maximum Lift Above Ground: 419 mm
Circle Centershift – Right: 520 mm
Blade Tip Range – Backward: 5°
Maximum Shoulder Reach Outside of Tires – Right: 2004 mm
Moldboard Sideshift – Right: 790 mm
Moldboard Sideshift – Left: 740 mm
Maximum Shoulder Reach Outside of Tires – Left: 1870 mm
Blade Tip Range – Forward: 40°
Frame
Circle – Outer Diameter: 1822 mm
Front Axle – Wheel Lean – Left/Right: 17.1°
Front Axle – Total Oscillation per Side: 32°
