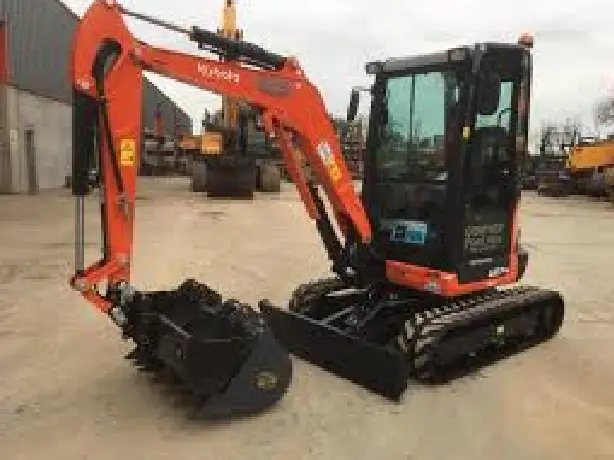

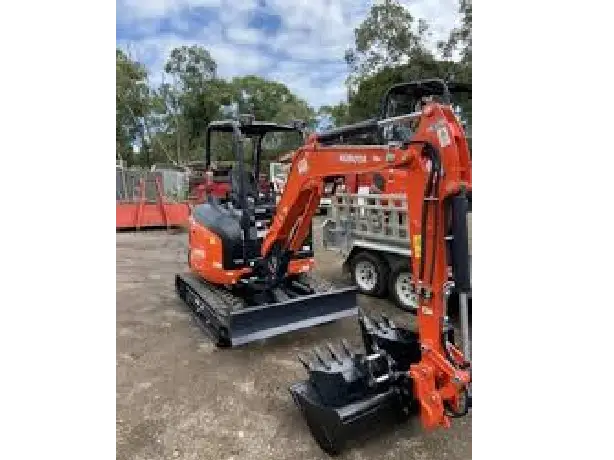

Kubota mini excavator

Description

Model name: U27-4
Model: D1105-BH
Make: Kubota
Rated engine speed: 2400 rpm / 2400 rpm
Displacement: 68.5 cu. in. / 1123 cc
Output (SAE J1995 gross): 20.8 HP / 15.5 kW
Output (SAE J1349 net): 20 HP / 14.9 kW
Auxiliary hydraulic flow
Pump capacity: 7.6 gpm / 28.8 l/min
Breakout force
Bucket: 7014 lbf / 3180 kgf
Arm: 2777 lbf / 1260 kgf
Dimensions and weight
Ground clearance: 12.1 in / 307 mm
Overall height: 95 in / 2420 mm
Overall length: 162 in / 4100 mm
Overall width: 9 in / 1500 mm
Blade
Width: 59 in / 1500 mm
Height: 11.8 in / 300 mm
Maximum lift above ground: 14.2 in / 360 mm
Maximum drop below ground: 12.6 in / 320 mm
Tracks
Type: Rubber
